Top quality Latest Version V54 FGTech Galletto 4 Master BDM-TriCore-OBD Function FG Tech ECU Programmer with Multi-langauge
What difference between FGTECH FW 0475 EU Version and FGTECH FW 0386 :
1.FW 0475 EU Version fixed all unstable problem and errors which FW 0386 had. MCU, EEPROM , Relay, Resistance, Led, Solder, Pin, Capacitor these all are corrected
2. FW 0475 EU Version Adds new components, best usb bridge and relays. Work well with OBD / BDM / Boot / Tricore, However FW 0386 is not good at Tricore.
3. FW 0475 EU Version Adds much more and newer vehicles and ECU protocols than FW 0386
4. FW 0475 EU Version Support more OS : Win XP / Win7 32bit and 64bit / Vista,
FW 0386 can only work well with win xp.
5. FW 0475 EU Version is unlocked version ,You can use it online
FW 0378 must disconnect internet when using.
6. Their the main program of pcb is different .
7. FW 0475 version software is more user-friendly.
Top 6 Reasons To Get FGTech Galletto 4 1. Latest Version: 2014 V54
2. Supported Operating System: windows XP. more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate
4. FGTECH V54 PCB board
5. Supported Language: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function
Notice: There is No Power Supply in the Package
FG Tech Galletto 4 Maste Description:
FGTech Galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , checksum.
Boot Mode System:
NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu
Automatic Checksum:
All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,

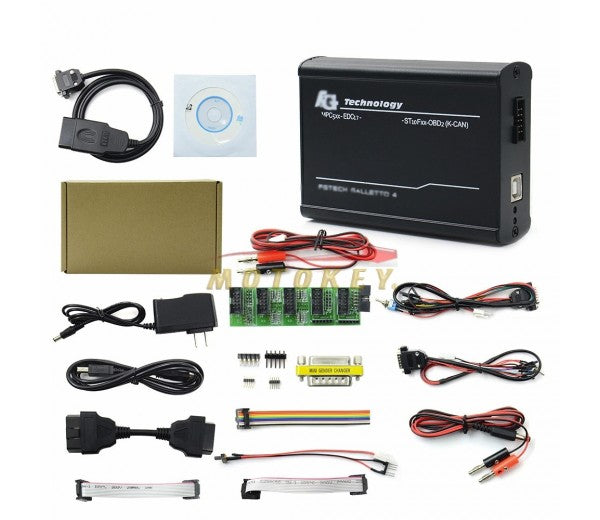

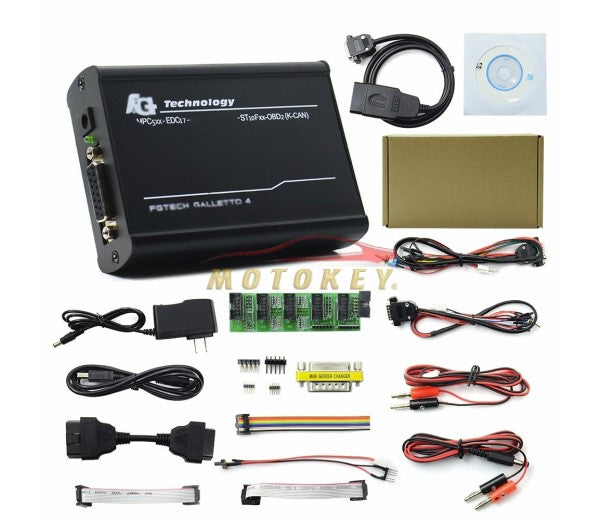

FGTech Galletto V54 Package List:

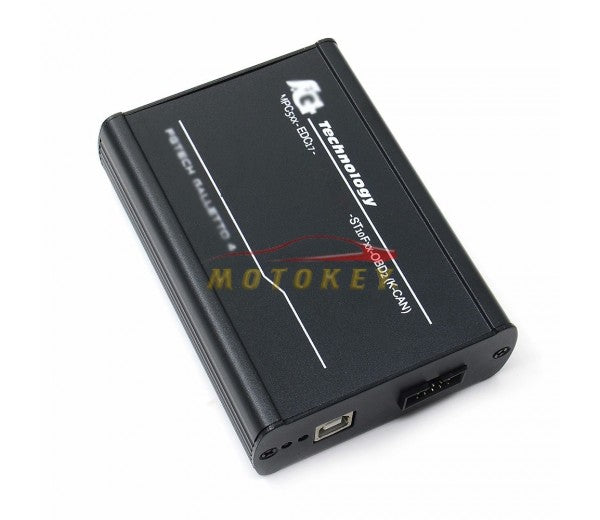

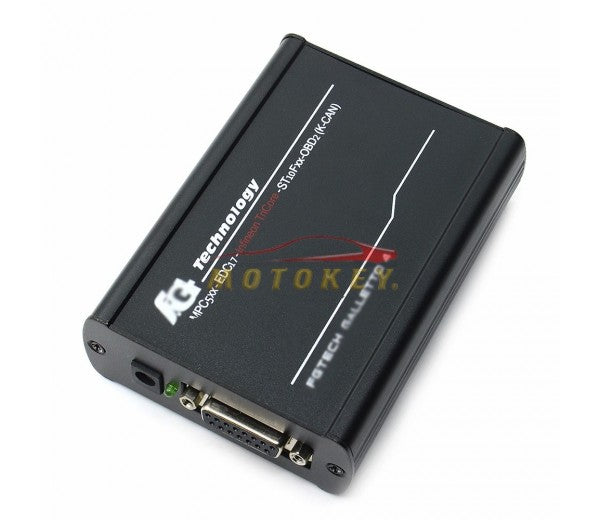

1pc x New Version Main Interface
1pc x ECU Cable for Boot
1pc x Adapter for BDM to CMD with BDM Cables

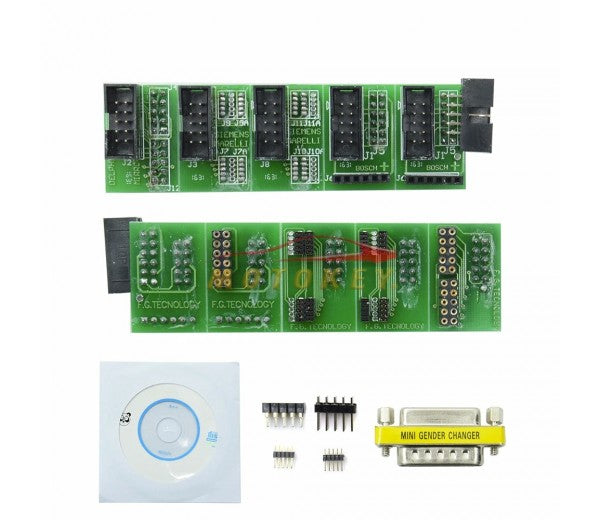

3pcs x BDM Adapters
6pcs x BDM Connectors
2pcs x Power Cable
1pc x OBD2 Cable
1pc x USB Cable (1.5meter)
1pc x CD (2012 Version SW -MASTER, Documents PDF, Pictures, etc.)
0475
