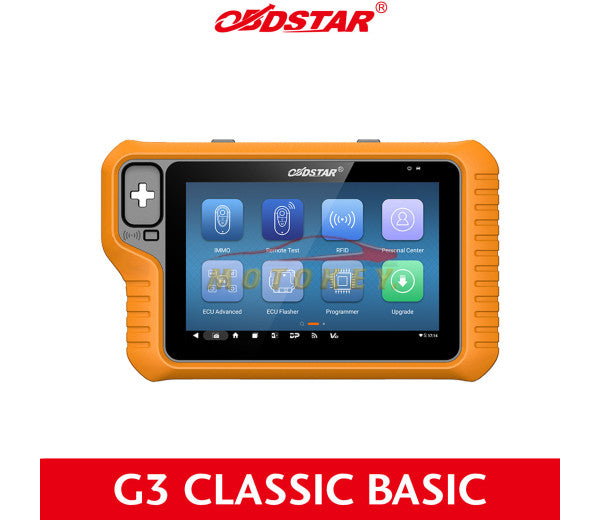

OBDSTAR X300 Classic G3 A1 A2 with Basic License
OBDSTAR X300 Classic G3 A1 A2 with Basic License
Regular price
$1,320.00 USD
Regular price
$2,500.00 USD
Sale price
$1,320.00 USD
Quantity
Couldn't load pickup availability
OBDSTAR X300 Classic G3 A1 A2 with Full Licenses
Please check the supported list before buying:
X300 Classic Full Function List 2025-06-15

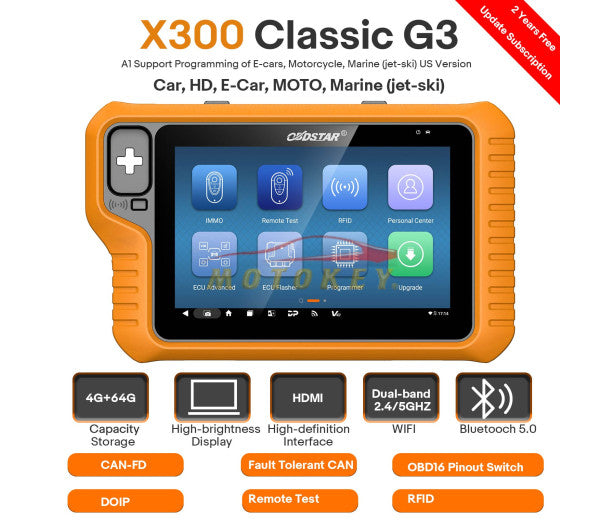

X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.
Product Highlights:
1. Built in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;
2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
Product Features:
8. Two years free update. 500 USD for yearly renewal if you renew it before it expires. Otherwise, it will be (500+ 80+80/ 365* expiration days) USD.
Function module list
A: IMMO A1.1: CAR IMMO
A1.2: HD IMMO
A1.3: E-CAR IMMO
A1.4: MOTO IMMO
A1.5: MARINE IMMO
A2.1 Remote Test
A3.1 ECU Advanced
A4.1 Make Key
A4.2 R/W Transponder
A4.3 Unlock Smart Key
A5.1 EEPROM/MCU
A5.2 Renew Key
B: ODO METER
B1.1: Car ODO METER
B1.2: MOTO ODO METER
B2.1: Oil/Service Reset

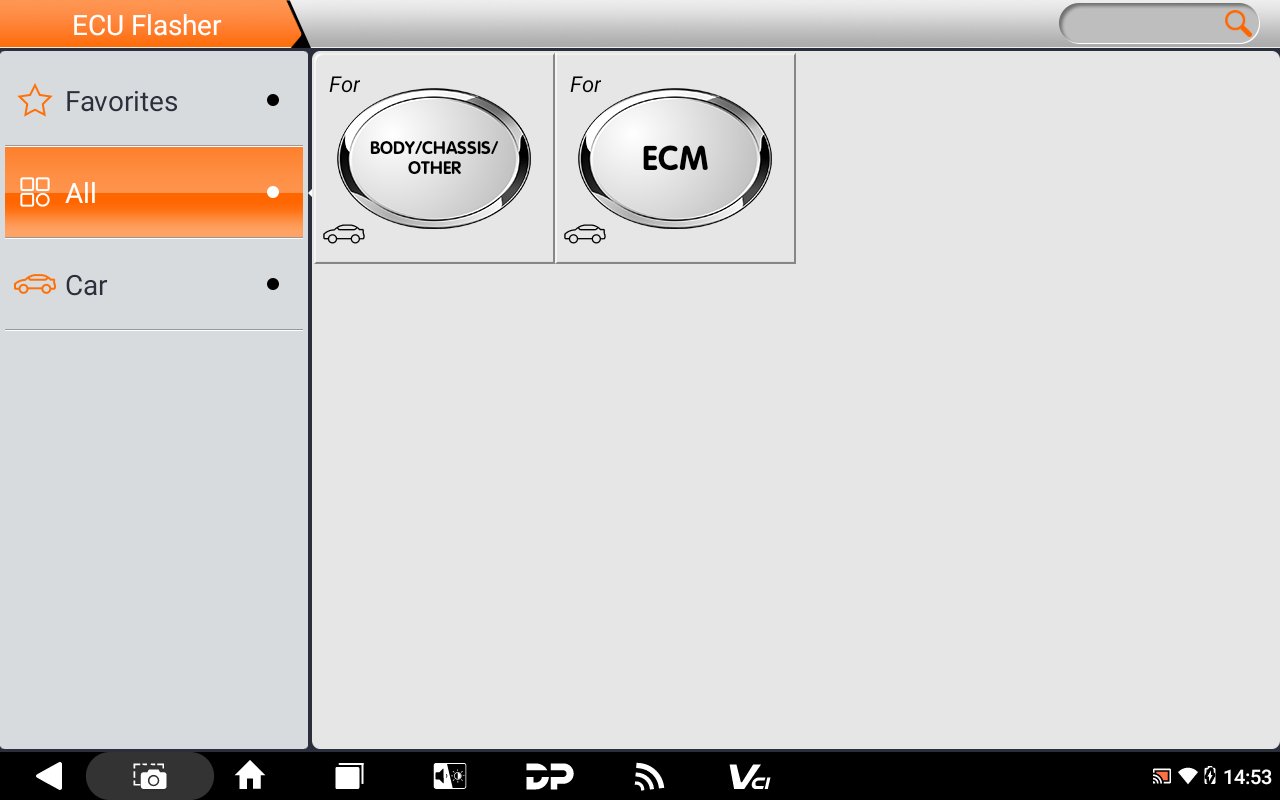

C: ECU Flasher
C1.1: CAR ECM
C1.2 :CAR TCM
C1.3: CAR BODY
C2.1: MOTO ECM
D: Crash Reset
D1.1: Battery Reset (MVBM)
D1.2: Airbag Reset
D1.3: SAS Reset
E: Test Platform
E1.1: Dash Board
E1.2: E-CAR ABS
E1.3: Gear Lever
E1.4: A/C panel
E1.5: E-CAR BSG
E1.6: E-CAR MHEV
E1.7: E-CAR AUDIO
E1.8: E-CAR EBA
Attention:
"-" in the car list doesn't mean ``up to date. For example, Crown Victoria (2005 -) means the device can work with a 2005 for sure, you can try with 2006 model, but if it fails, there is no solution.
Product Comparison:
Hardware Advantages:
1. Built in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;
2. RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.
Product Features:
Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6SM6 models.
8. Two years free update. 500 USD for yearly renewal if you renew it before it expires. Otherwise, it will be (500+ 80+80/ 365* expiration days) USD.

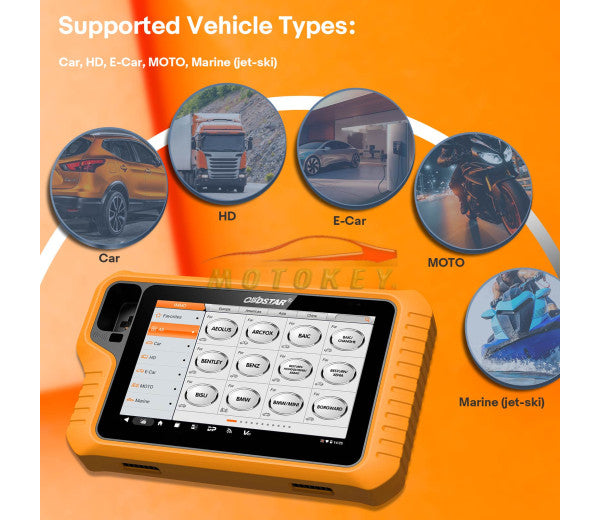

Supported Vehicle Types:
Car, HD, E-Car, MOTO, Marine (jet-ski)
Software Functions:
Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.
Function module list
A: IMMO A1.1: CAR IMMO
A1.2: HD IMMO
A1.3: E-CAR IMMO
A1.4: MOTO IMMO
A1.5: MARINE IMMO
A2.1 Remote Test
A3.1 ECU Advanced
A4.1 Make Key
A4.2 R/W Transponder
A4.3 Unlock Smart Key
A5.1 EEPROM/MCU
A5.2 Renew Key
B: ODO METER
B1.1: Car ODO METER
B1.2: MOTO ODO METER
B2.1: Oil/Service Reset
C: ECU Flasher
C1.1: CAR ECM
C1.2 :CAR TCM
C1.3: CAR BODY
C2.1: MOTO ECM
D: Crash Reset
D1.1: Battery Reset (MVBM)
D1.2: Airbag Reset
D1.3: SAS Reset
E: Test Platform
E1.1: Dash Board
E1.2: E-CAR ABS
E1.3: Gear Lever
E1.4: A/C panel
E1.5: E-CAR BSG
E1.6: E-CAR MHEV
E1.7: E-CAR AUDIO
E1.8: E-CAR EBA
Attention:
"-" in the car list doesn't mean ``up to date. For example, Crown Victoria (2005 -) means the device can work with a 2005 for sure, you can try with 2006 model, but if it fails, there is no solution.
Product Comparison:
|
Products Details |
X300 DP Plus C | X300 Classic G3 | |
| Hardware | Operation system | Android 5.1.1 | Android 11 |
| OTA | x | √ | |
| Screen recording | x | √ | |
| Wireless screen casting | x | √ | |
| CPU | qual core ARM cortex A9 1.4GHz | Quad-core 64-bit Cortex-A55 2.0GHz | |
| Battery | 3700mAh | 9000mAh | |
| Storage capacity | 1+32GB | 4+64GB | |
| LCD | 8.0 inch | 8.0 inch fully laminated sunlight readable screen | |
| Camera | Rear camera 500W pixels | Rear camera 800W pixels, auto-focus | |
| Bluetooth | Bluetooth 4.2 | Bluetooth 5.0(Compatible with BT 4.2) | |
| External interfaces | x | RJ-45√ | |
| x | HDMI√ | ||
| TYPE-A | TYPE-A,TYPE-C | ||
| WiFi | 2.4G | Dual-band 2.4G/5GHZ | |
| VCI | STM32F105 | STM32H723 | |
| CANFD Adapter Required | CANFD built in√ | ||
| x | DOIP built in√ | ||
| x | Low Speed(Fault Tolerant) CAN built in√ | ||
| x | RS232、RS485 built in√ | ||
| All other common protocol types | All other common protocol types | ||
| RFID | P001 Required | Built in√ | |
| Remote Test | RT100 Required | Built in√ | |
| Renault Converter | Renault Converter Required | Built in√ | |
| Weight | About 1kg | 1.5kg (main unit) | |
| Dimension | 254mm*174mm*35mm | 270.5mm*165mm*39mm | |
| Functions | Diagnosis | √ | x |
| OBDⅡ | √ | √ | |
| Car IMMO | √ | √ | |
| MOTO IMMO | √ | √ | |
| HD IMMO | √ | √ | |
| Marine IMMO | x | √ | |
| E-Car IMMO | x | √ | |
| RFID | x | √ | |
| Make key | x | √ | |
| Unlock Smart key | x | √ | |
| Renew key | √ | √ | |
| Read/Write EEPROM MCU | √ | √ | |
| ECU advanced（Includes ECU unlock） | x | √ | |
| Oil/Service reset | √ | √ | |
| Other service function | √ | x | |
| Remote test | x | √ | |
| ECU flasher IMMO（IMMO OFF、ISN、IMMODATA） | x | √ | |
| ECU flasher（Clone） | √ Limited supported models, different with DC706 and G3 |
Paid activation | |
| Car/Motorcycle cluster recalibration | √ | Paid activation | |
| Airbag reset | √ | Paid activation | |
| Test Platform | x | Paid activation |

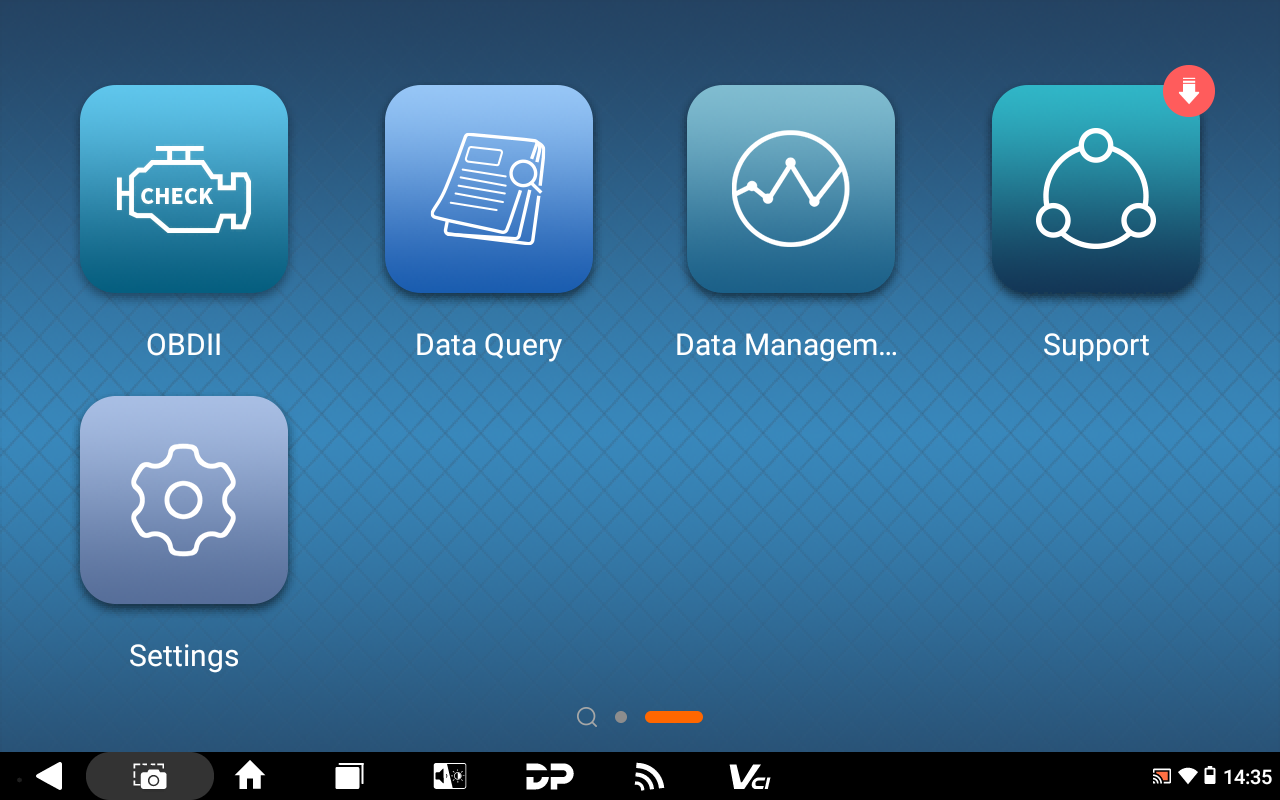

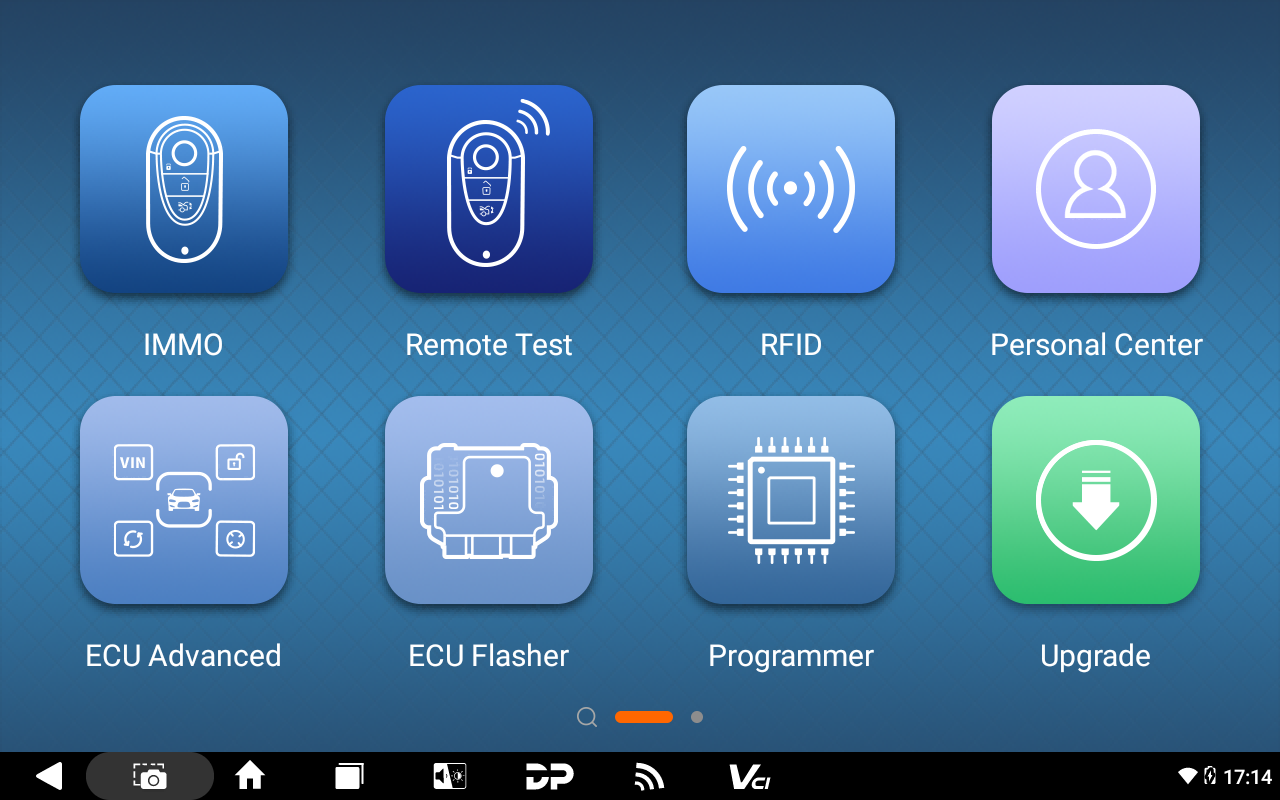

Function Display

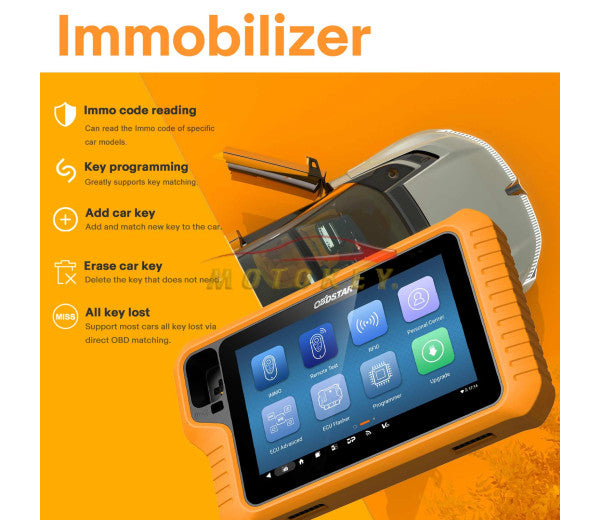

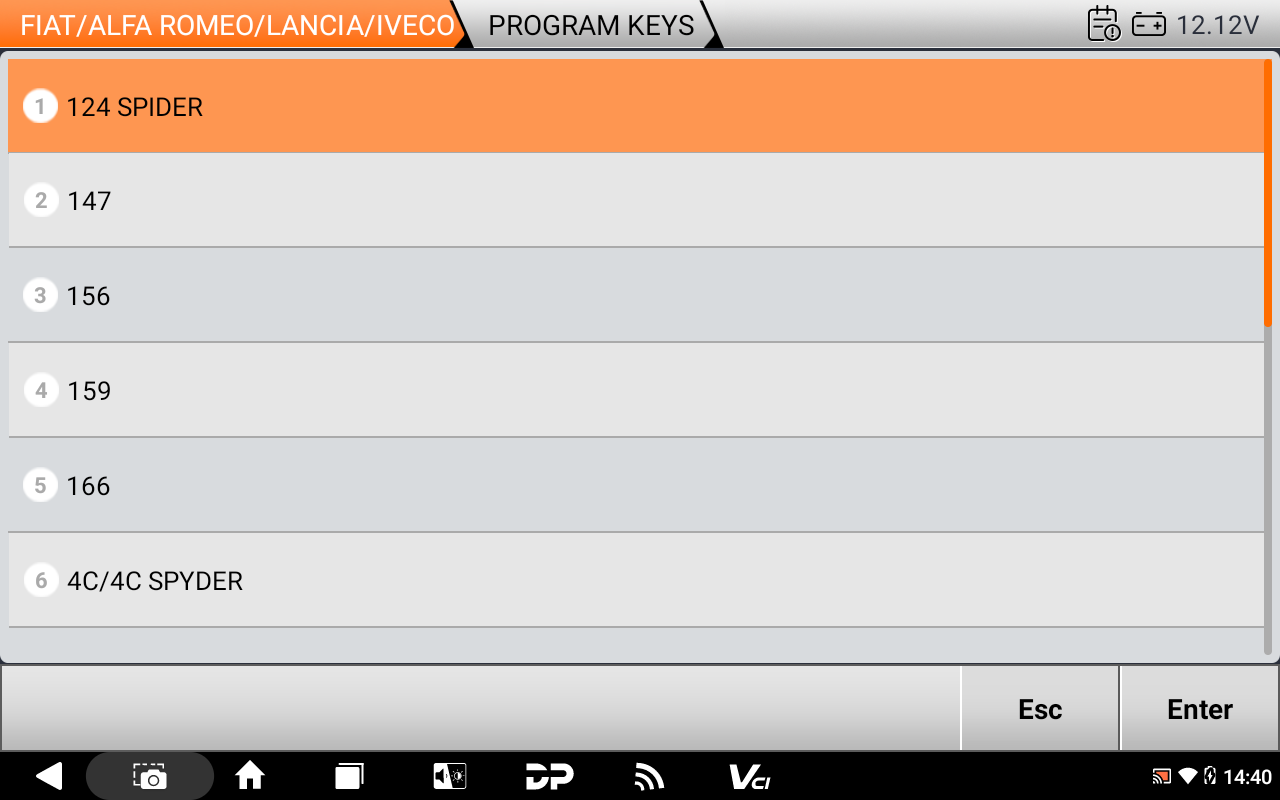

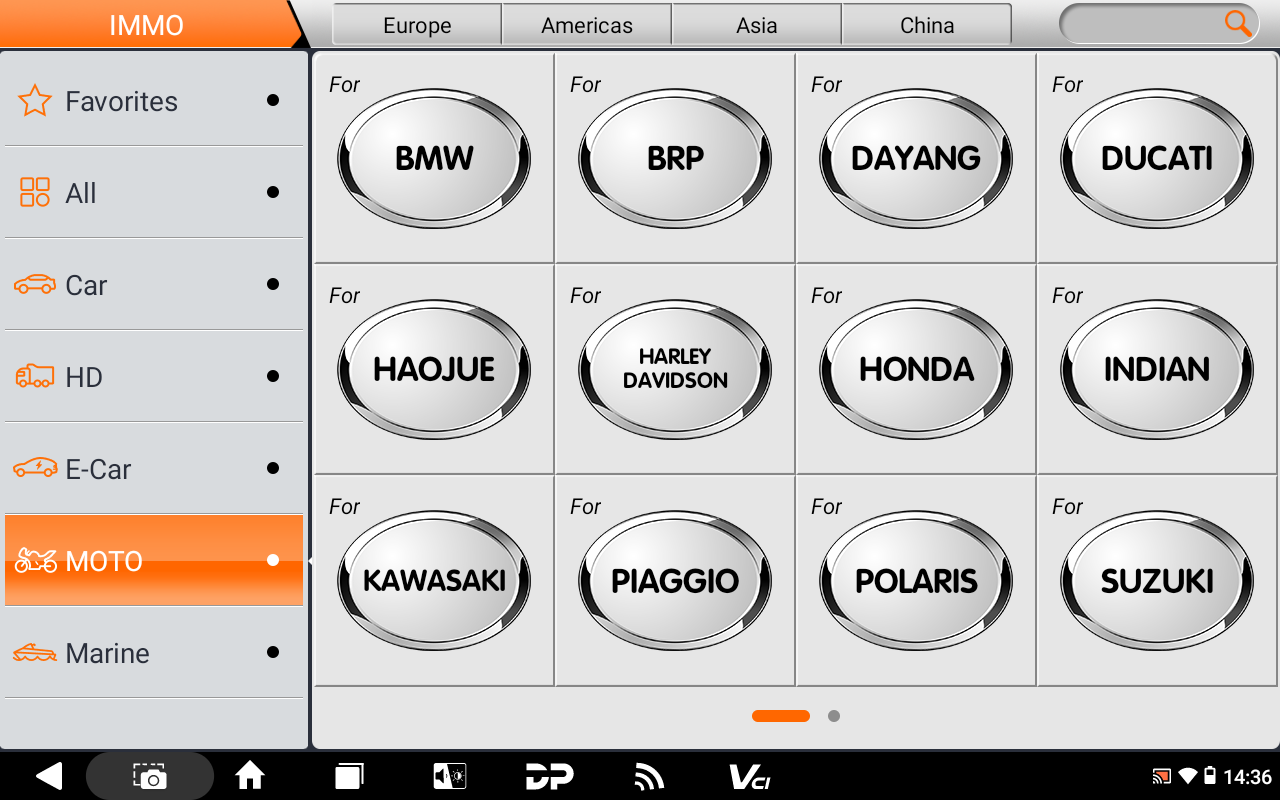

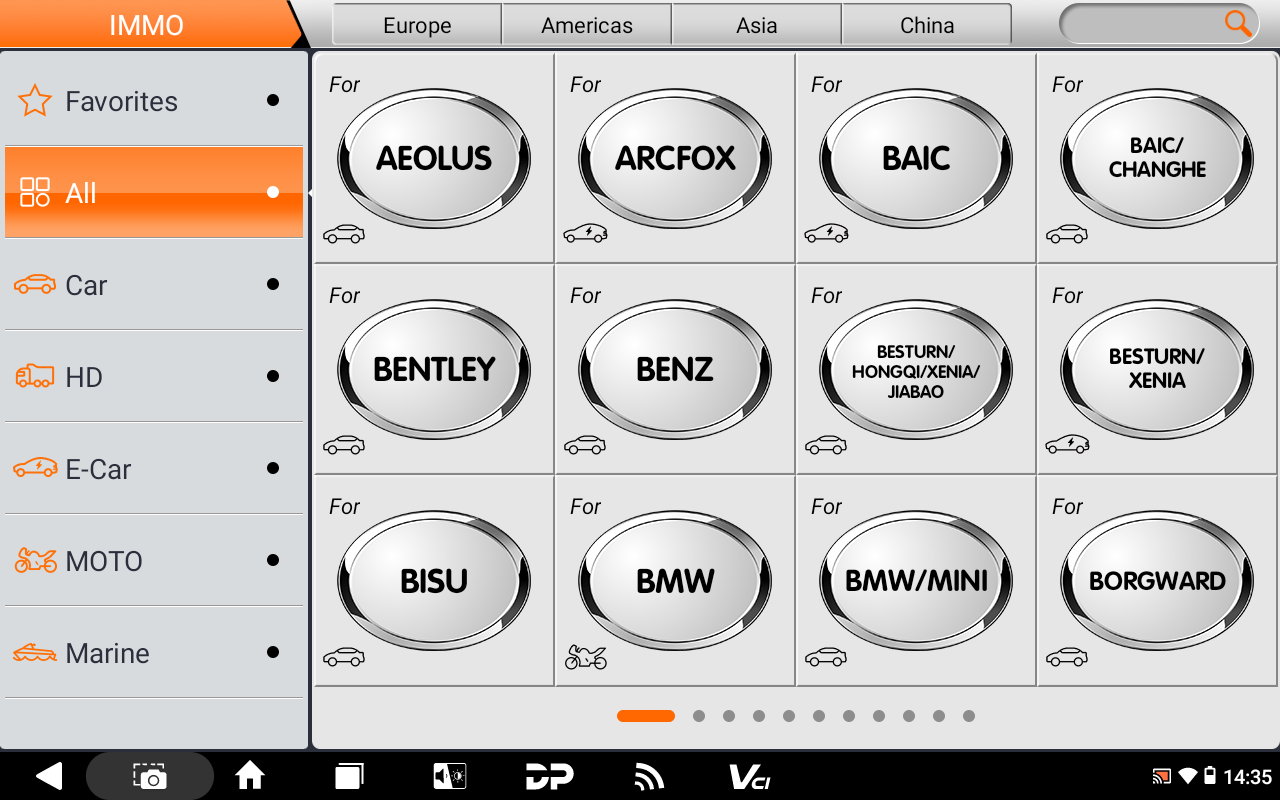

2) IMMO

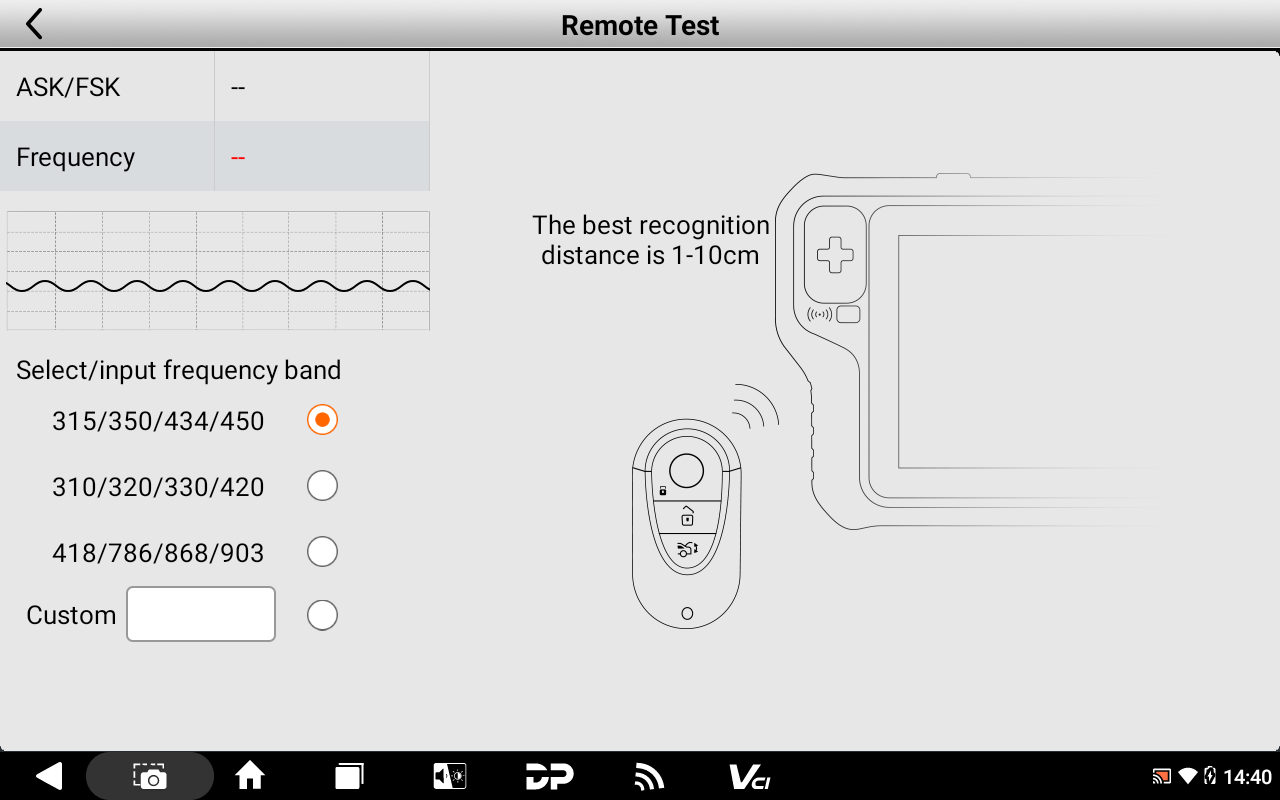

3) Remote Test

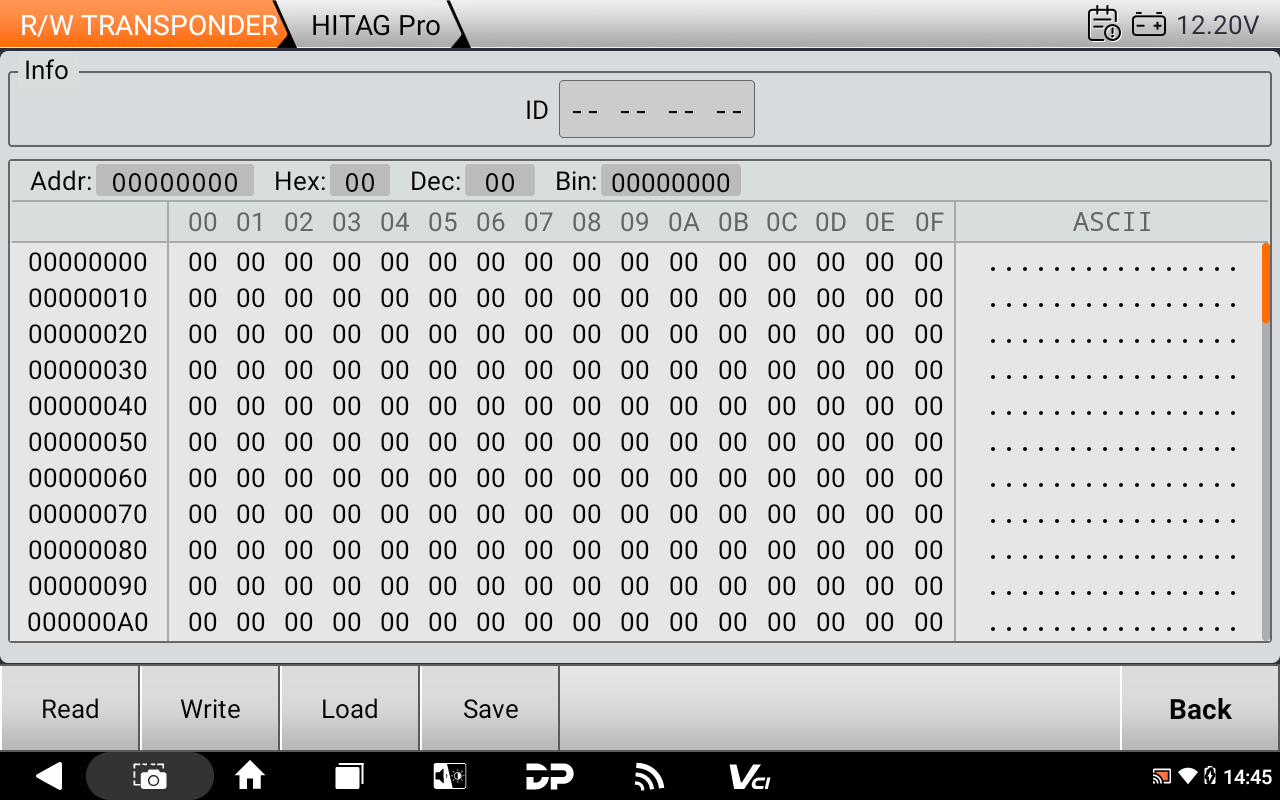

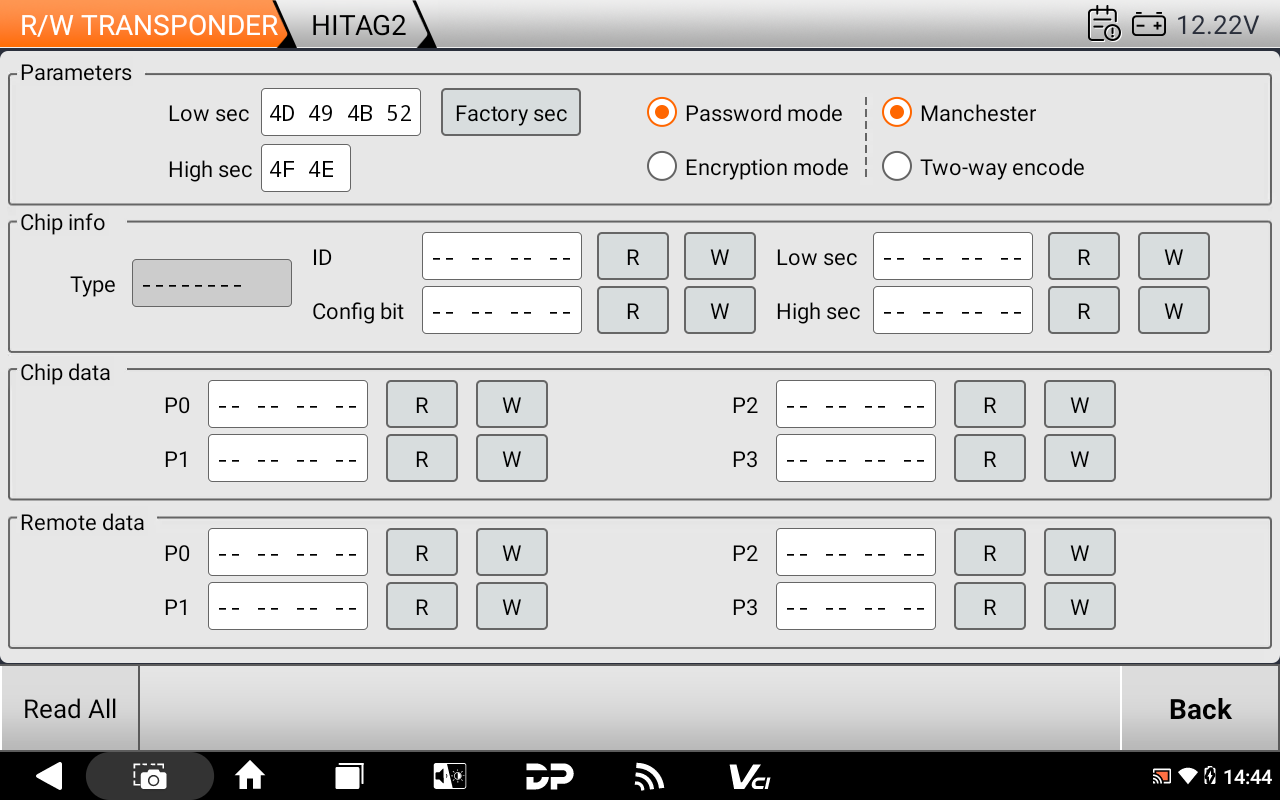

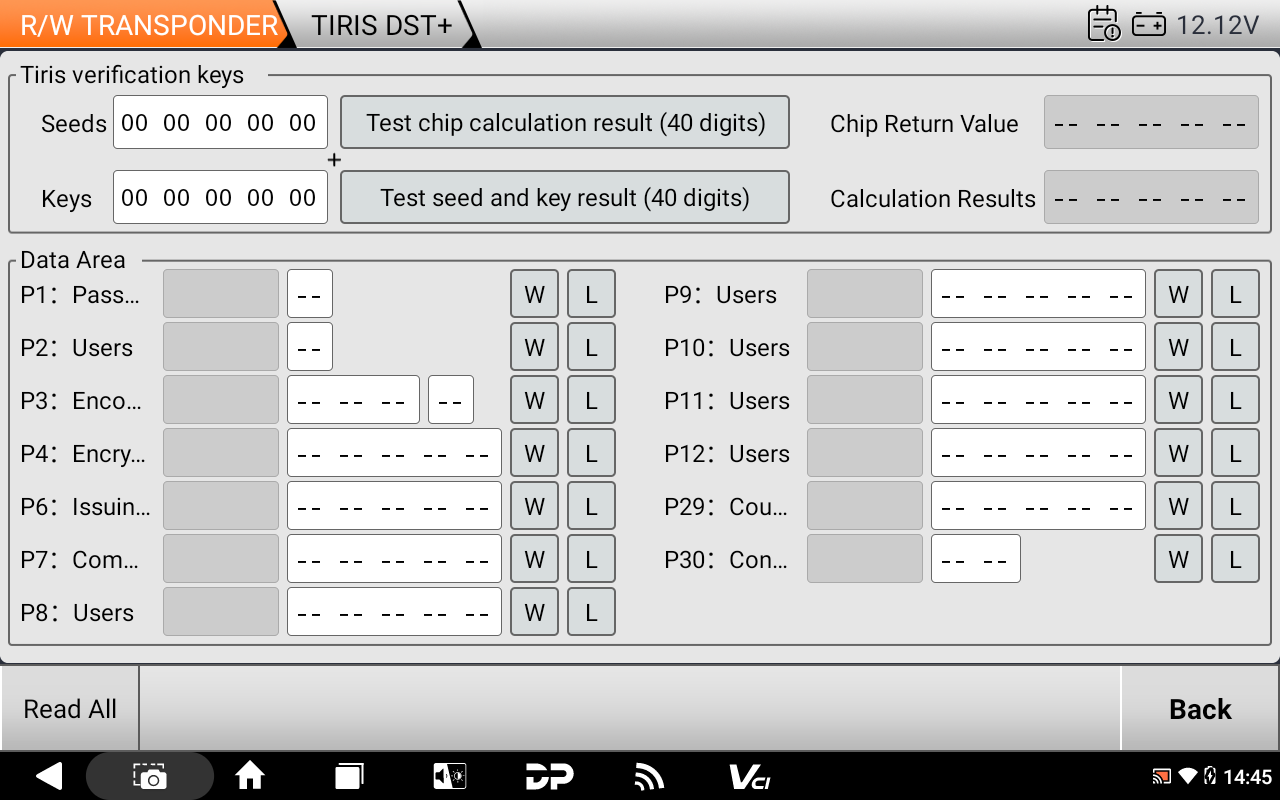

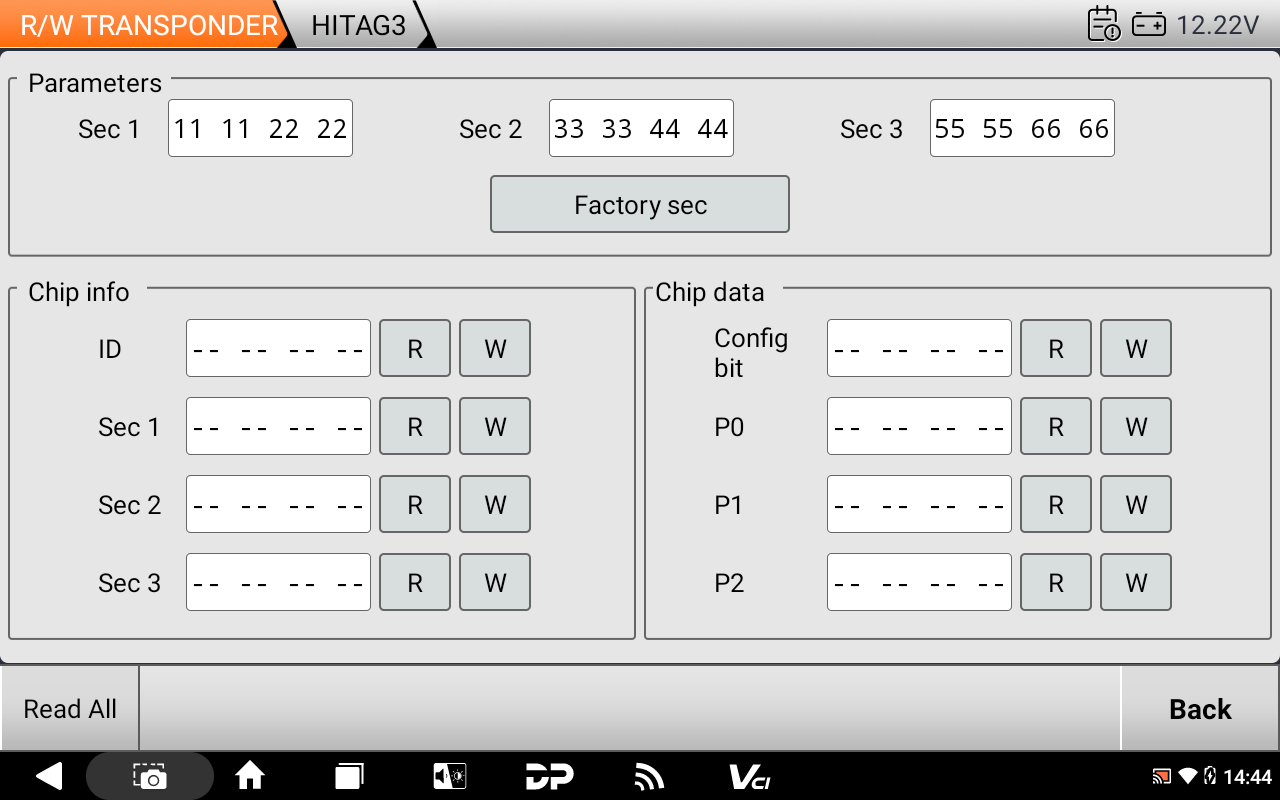

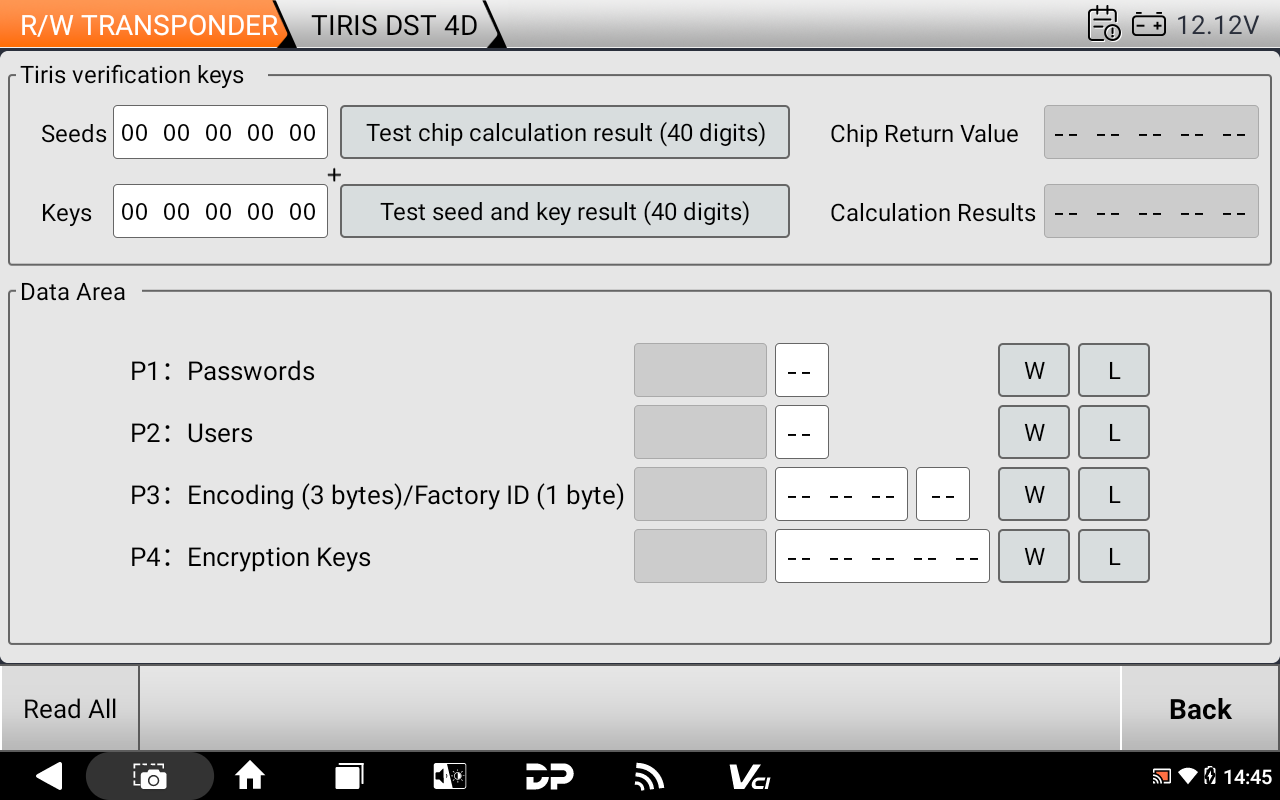

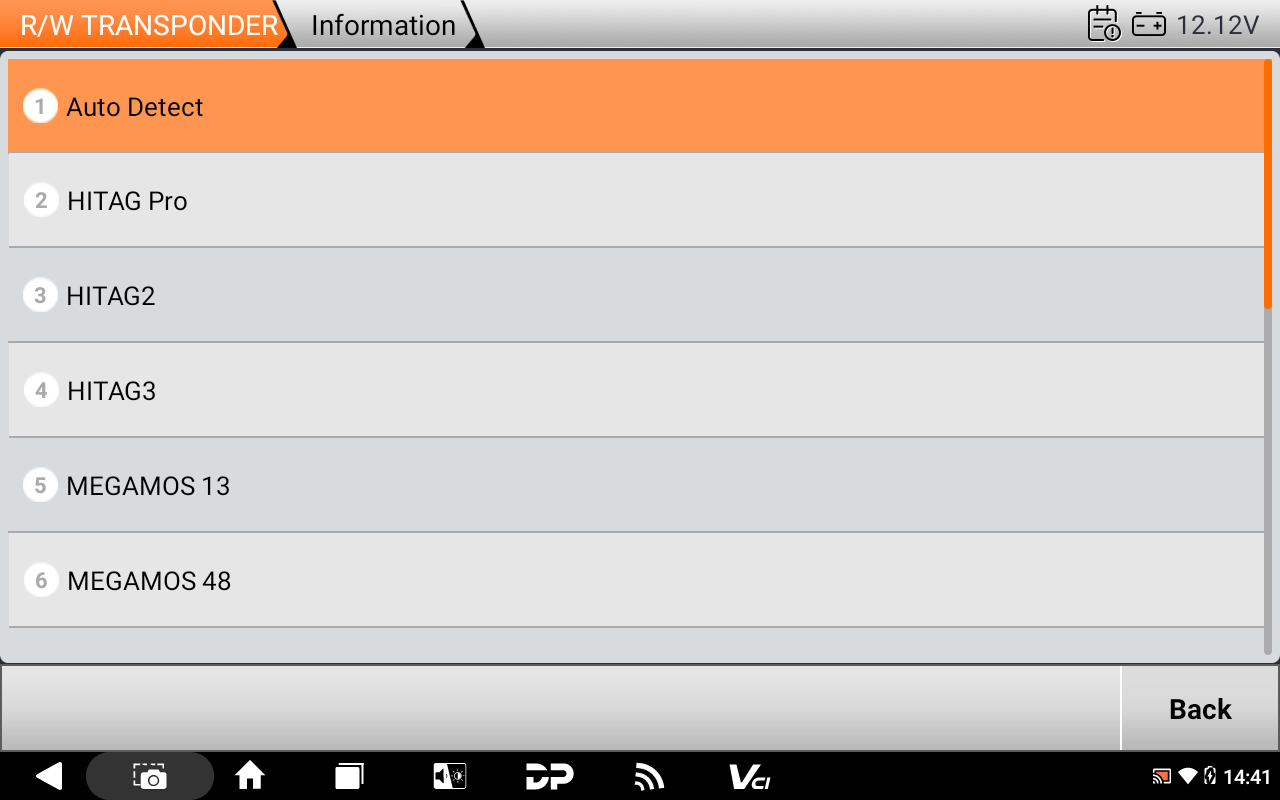

4) RFID

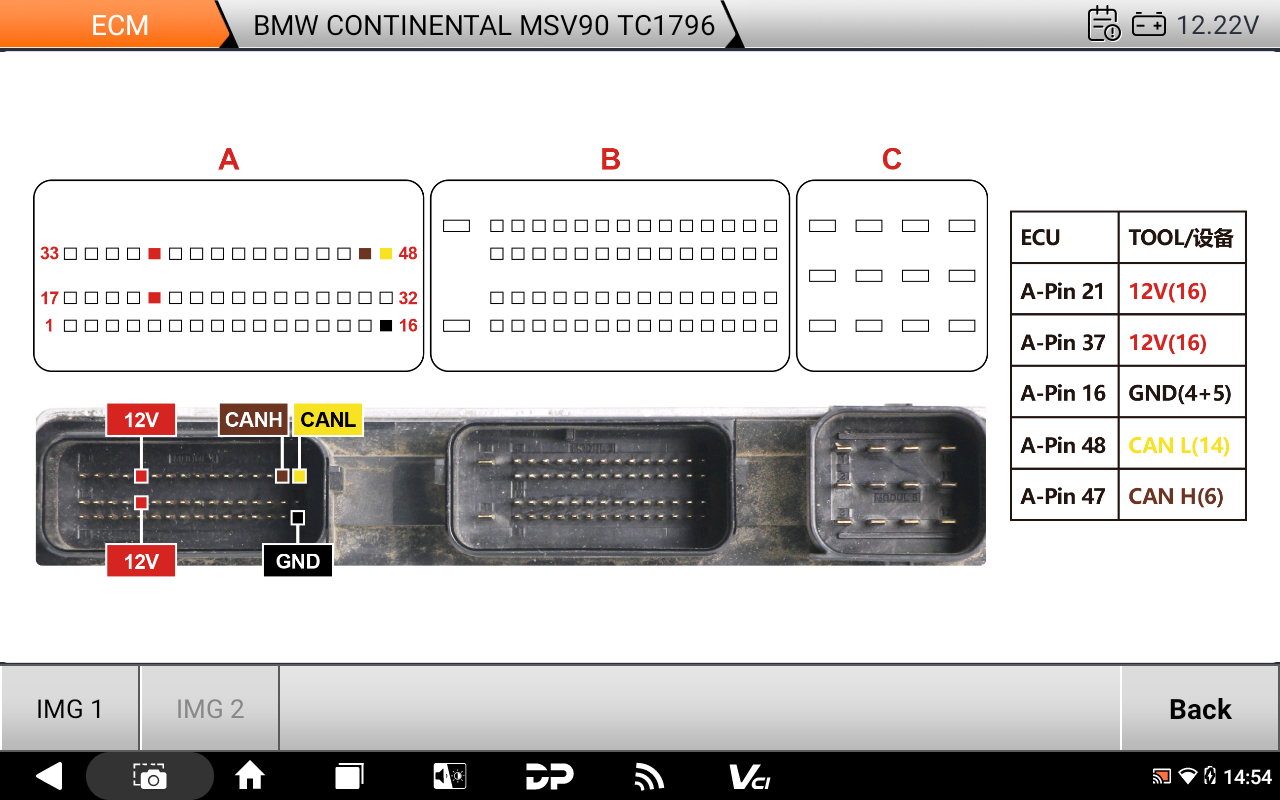

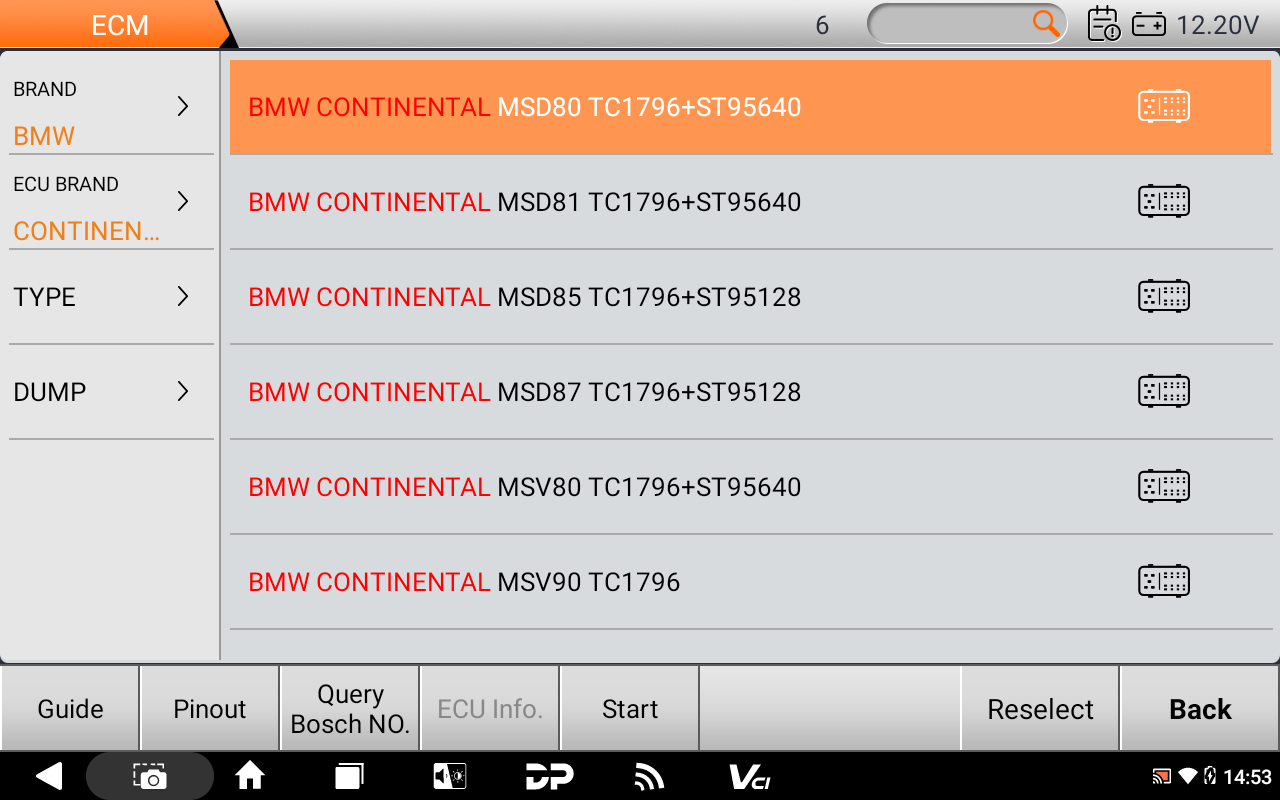

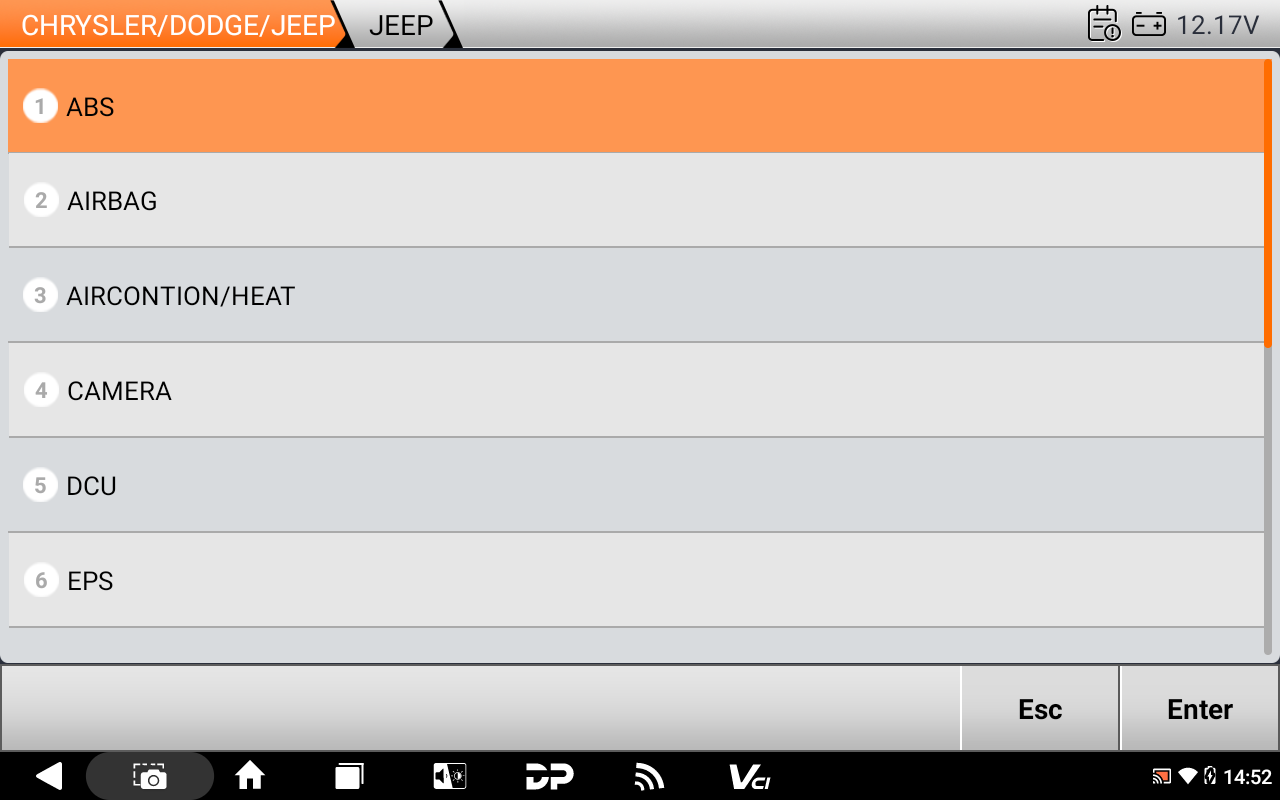

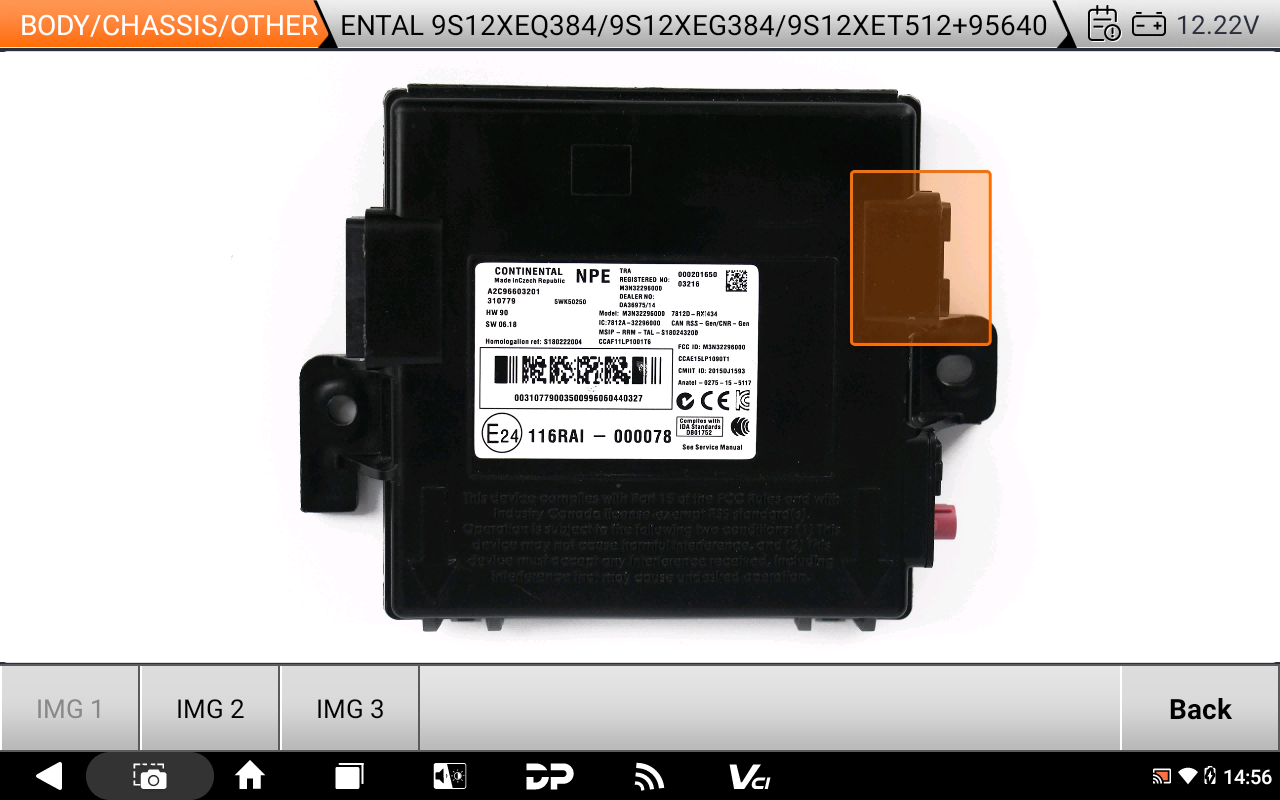

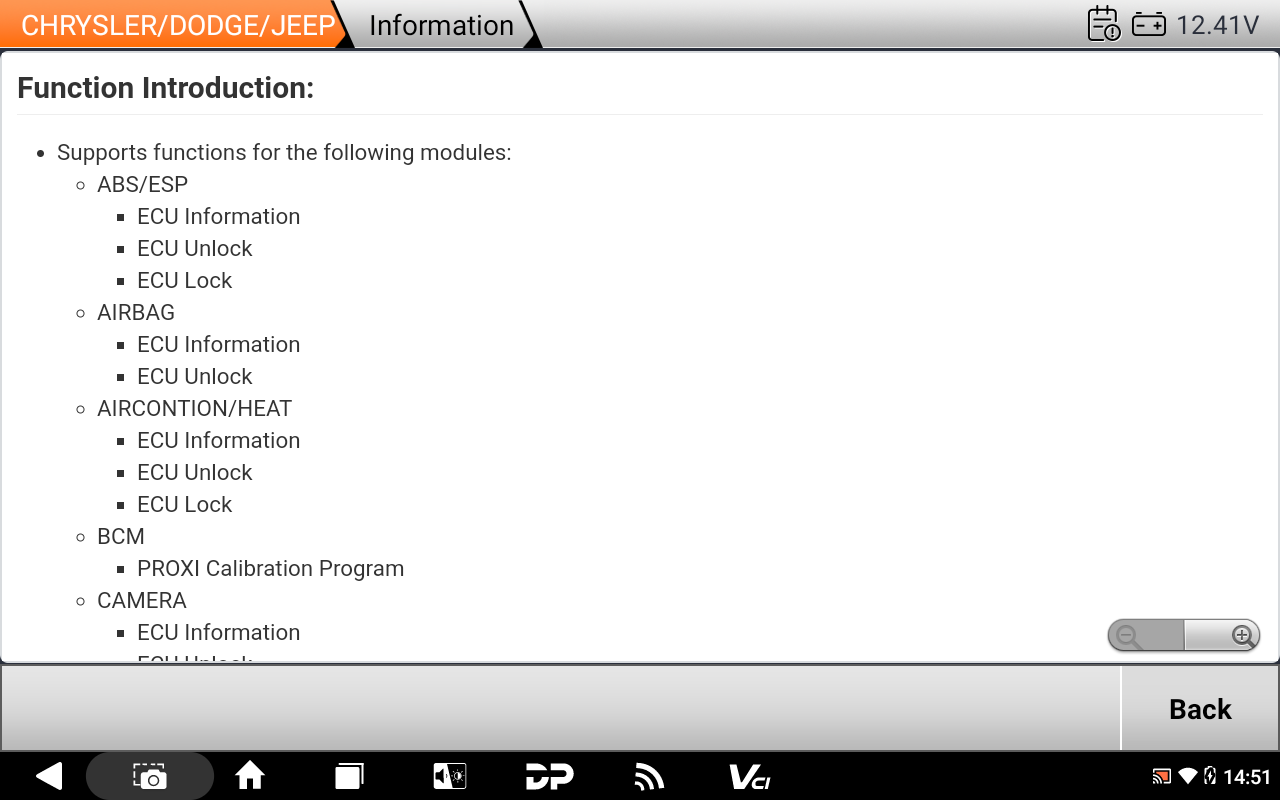

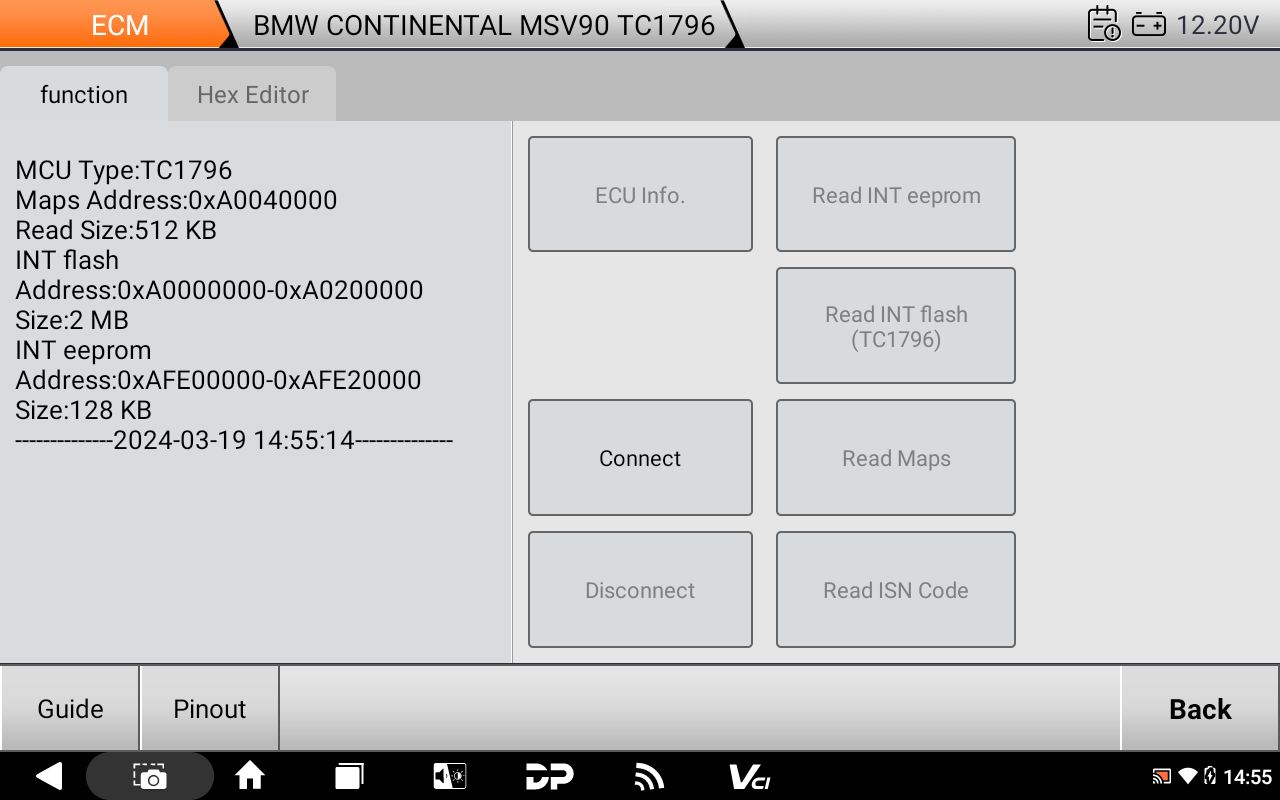

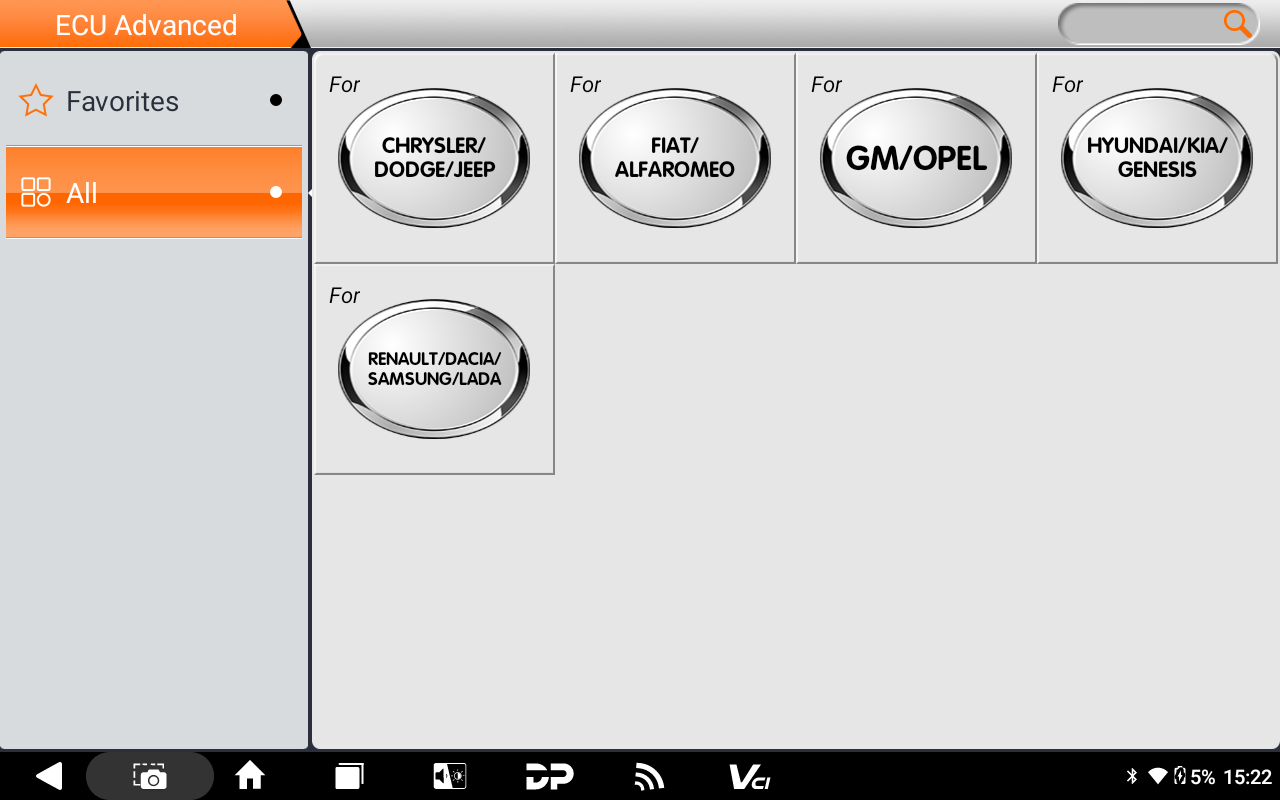

5) ECU Advanced
Package Includes:
1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness
1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness

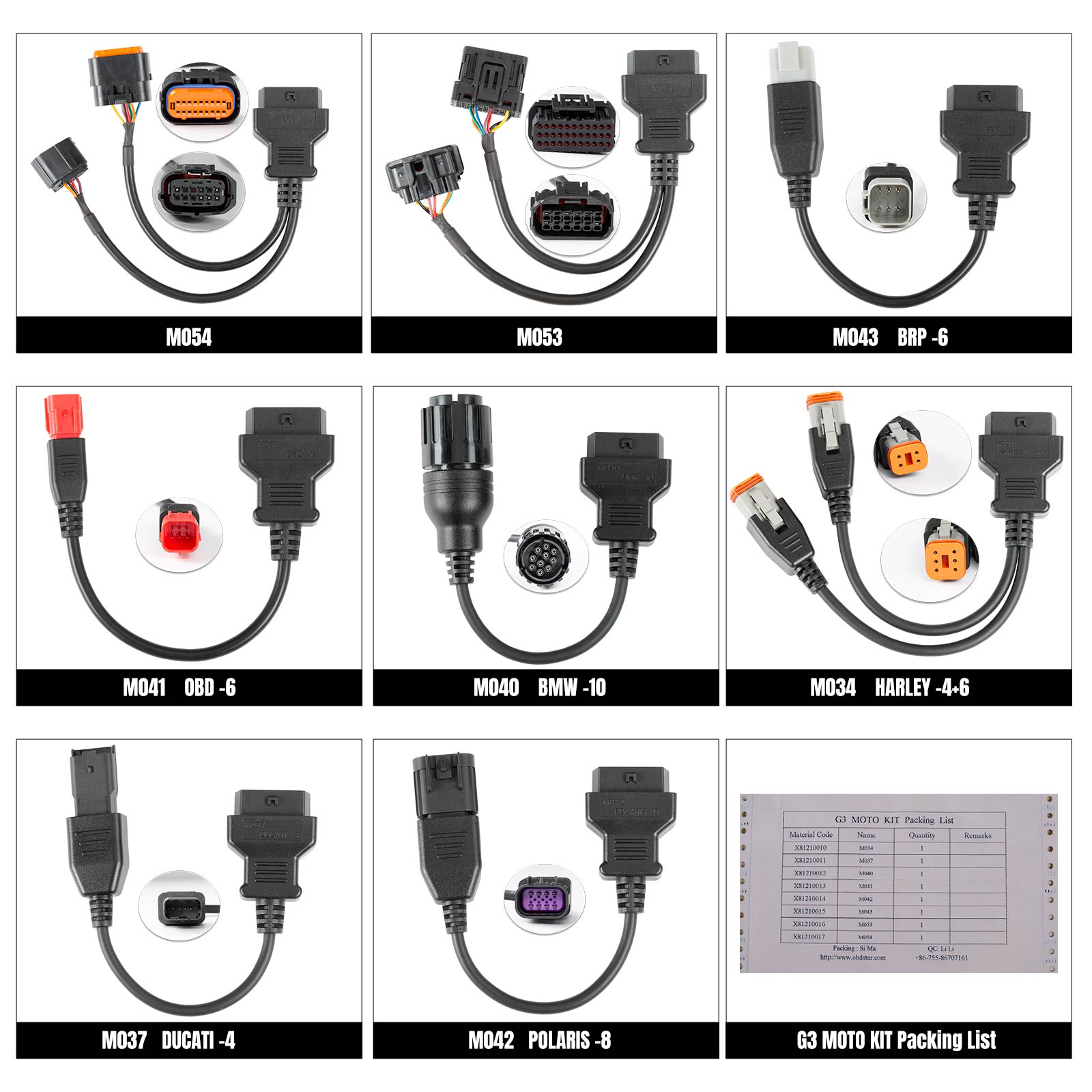

Free Gift Kits:
1pc x Key SIM + USB to Type-C Cable
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA
1pc x Key SIM + USB to Type-C Cable
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA
